Weighbridge Systems
Bolted modular steel platforms with U-shaped main beams and interchangeable sections for installation and transport.
- Structure: Bolted modular steel platform
- Main beams: U-shaped construction
- Capacity: Documented modular range: 80–120 tonnes

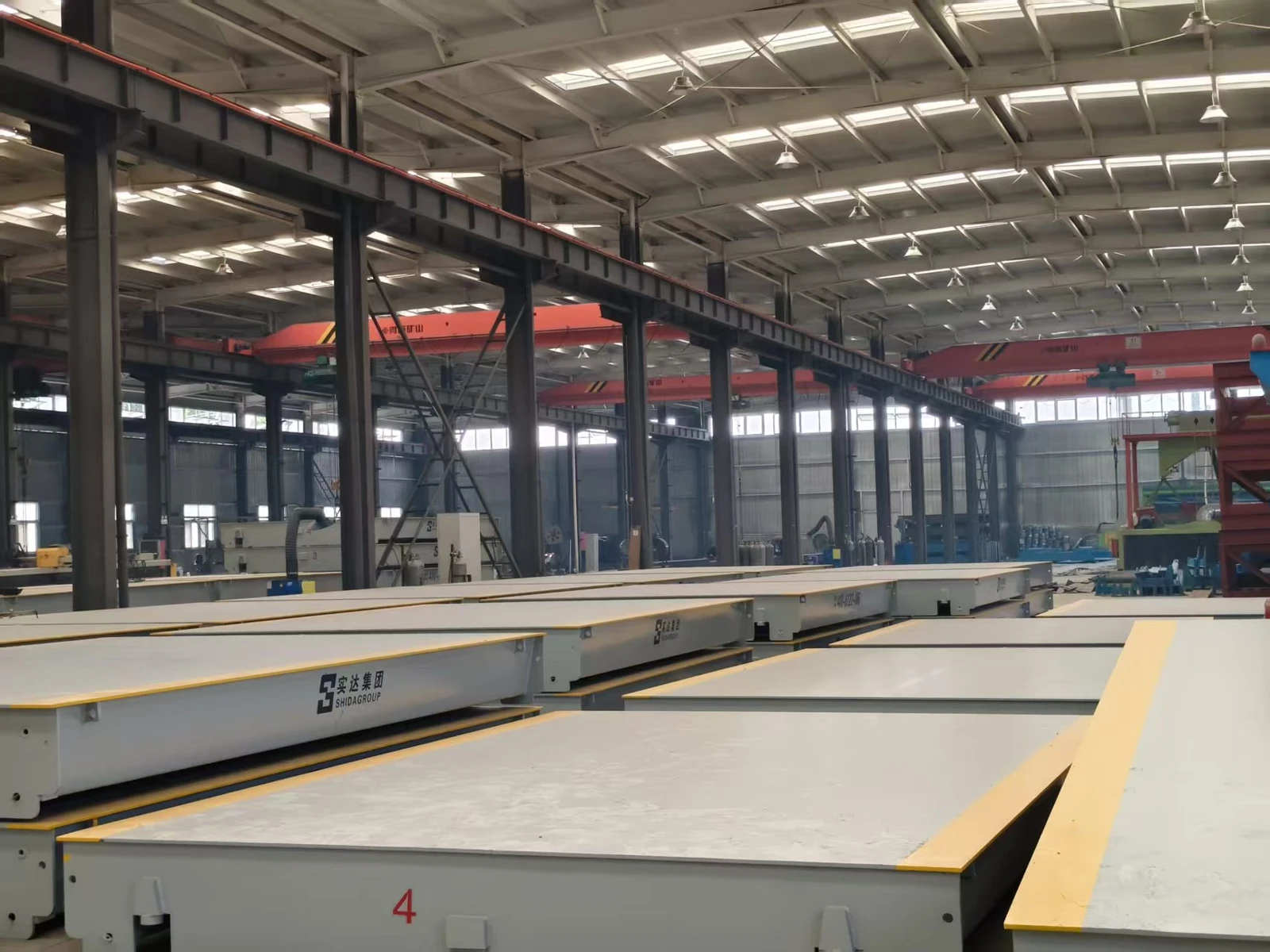

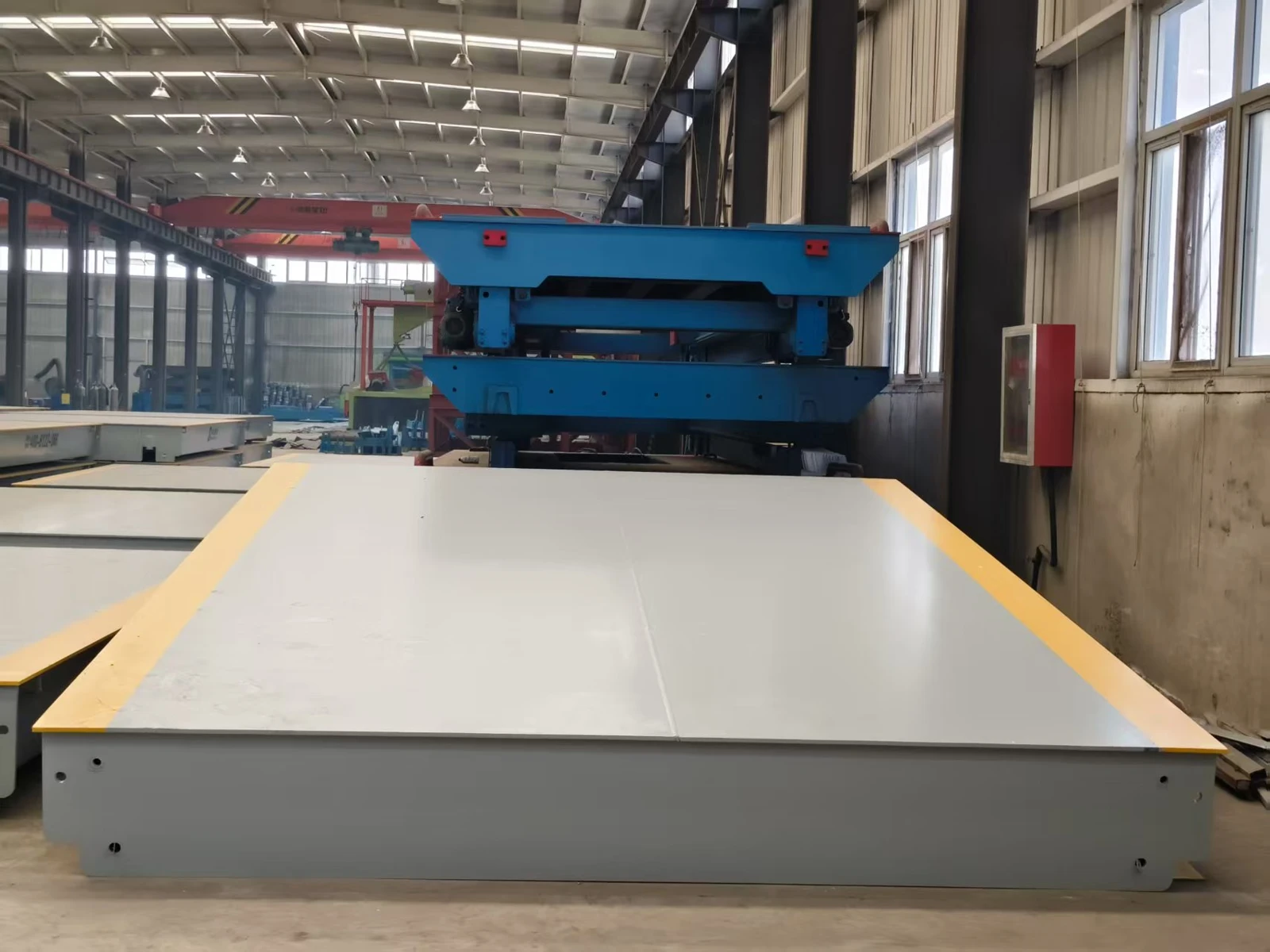

Modular steel platforms for installation, transport and operation.

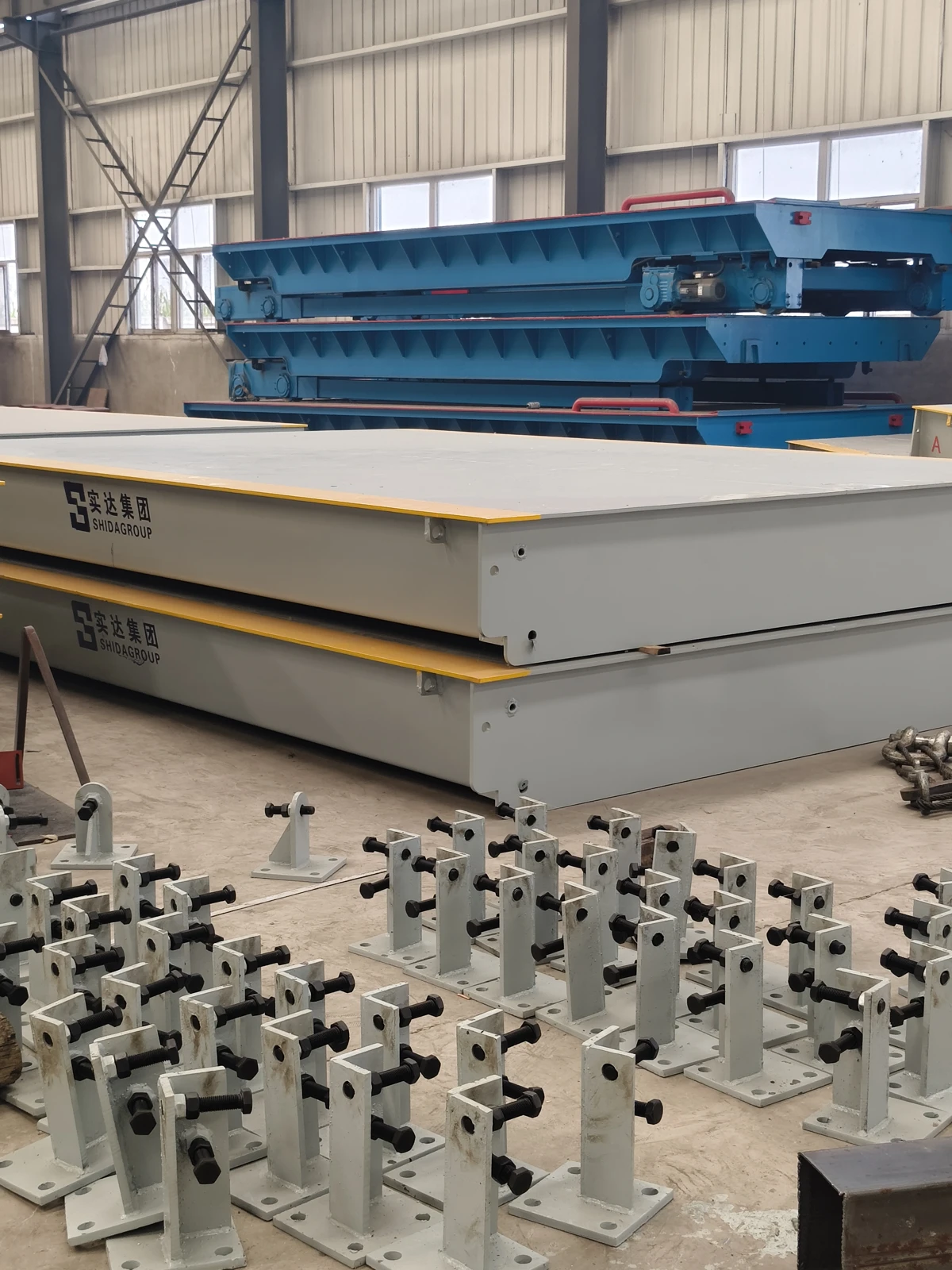

SHIDA modular weighbridges use U-shaped main beams with a split structure connected by bolts. The arrangement supports assembly and disassembly for transport and installation.
Modules with matching dimensions and bolt positions can be interchanged. The supplied modular range lists 80–120 tonne capacities; the selected model, platform dimensions and installation arrangement are confirmed for the project.

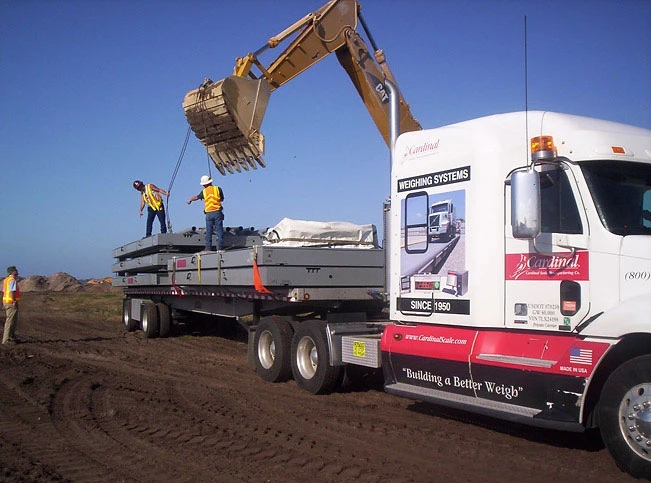

Transport can be arranged around 20-foot or 40-foot containers, including high-cube and open-top options. Share vehicle dimensions, weighing capacity and the proposed site layout for configuration review.
- Structure
- Modular steel weighing platform
- Main beams
- U-shaped main beams
- Assembly
- Split structure connected with bolts
- Module arrangement
- Matching module dimensions and bolt positions
- Documented modular range
- 80–120 tonnes; selected configuration to be confirmed
- Transport planning
- 20-foot / 40-foot container arrangements
- Project configuration
- Platform dimensions, weighing components and installation layout
Define the operating requirements and acceptance criteria for your selected configuration. Discuss these checks with our team before finalizing the equipment.
- Platform structureConfirm module dimensions, beam arrangement and assembly requirements.
- Weighing configurationReview capacity, load cell arrangement and indicator selection.

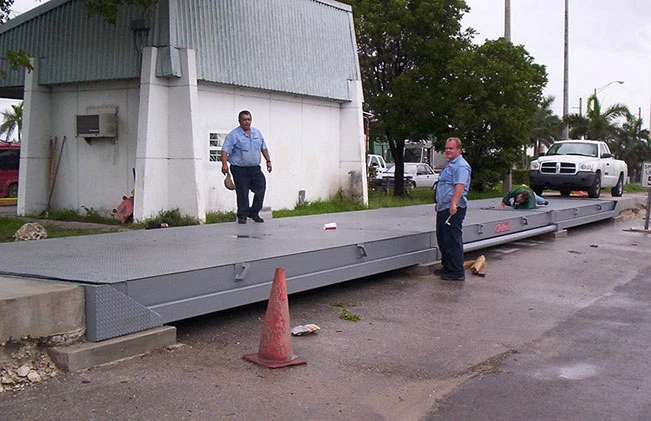

- Site installationConfirm access, installation conditions and transport arrangements.
