Axle Load Scales
Steel platforms, load cells and weighing controls supporting static or dynamic axle measurement and weight records.
- Measurement: Static or dynamic axle weighing
- Components: Steel platform, analog load cells and controller
- Connectivity: Documented RS-232C / RS-422 interfaces
Static and dynamic axle measurement with weighing records.

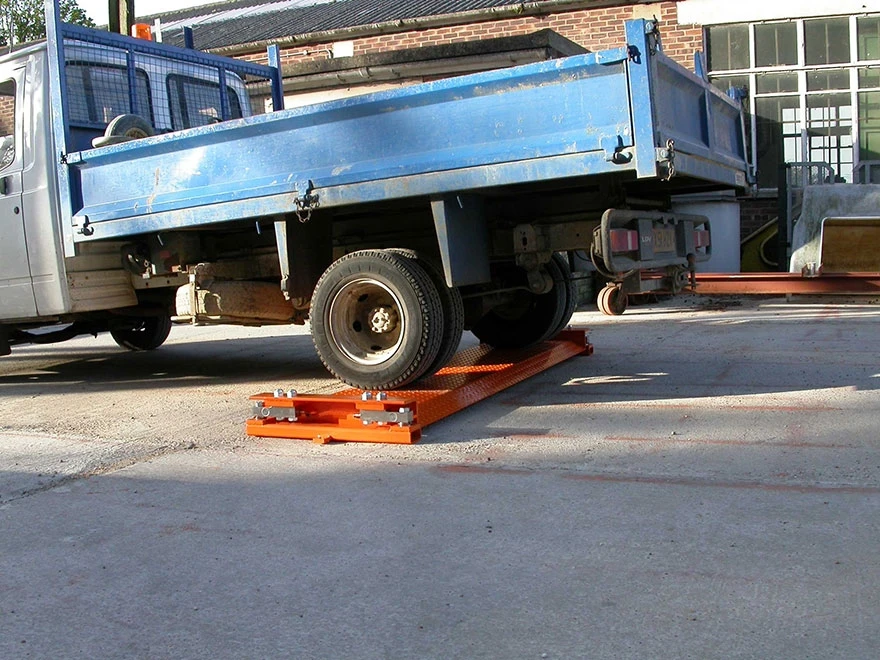

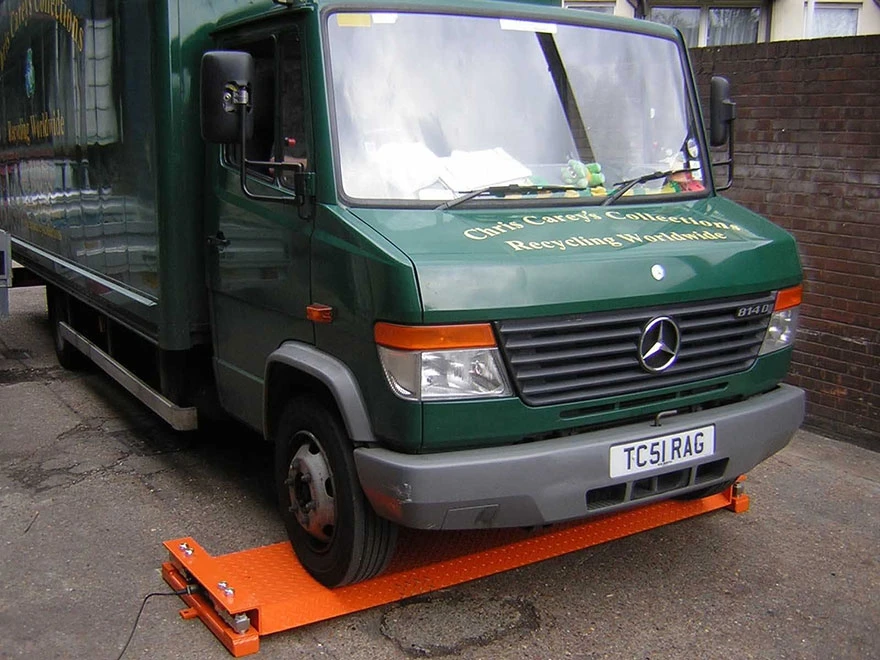

The documented axle load scale combines a modular steel platform, resistance strain-gauge analog load cells and a dynamic weighing control and display unit.
Its controller supports static and dynamic weighing, gross and net weight display, tare and preset tare, zero setting, stored data retrieval and shift management. Serial interfaces connect a computer or a large-screen display.
With an appropriate printer connection, weight records and shift or daily reports can be produced. Confirm the platform arrangement, operating mode and reporting needs for your application.
- Platform
- Modular steel weighing platform
- Load measurement
- Resistance strain-gauge analog load cells
- Operating modes
- Static and dynamic weighing
- Documented controller display
- 6-digit weight and status display
- Documented controller sampling
- A/D conversion rate above 500 samples per second
- Documented serial interfaces
- RS-232C / RS-422
- Weight functions
- Gross / net, tare / preset tare, zero setting and totals
- Records
- Data storage, retrieval, shift and daily reporting
Define the operating requirements and acceptance criteria for your selected configuration. Discuss these checks with our team before finalizing the equipment.
- Operating modeConfirm static or dynamic measurement and the vehicle approach.
- Instrument selectionConfirm the controller model and required communication interfaces.
- Weight recordsReview vehicle IDs, report formats and data storage requirements.
